Description

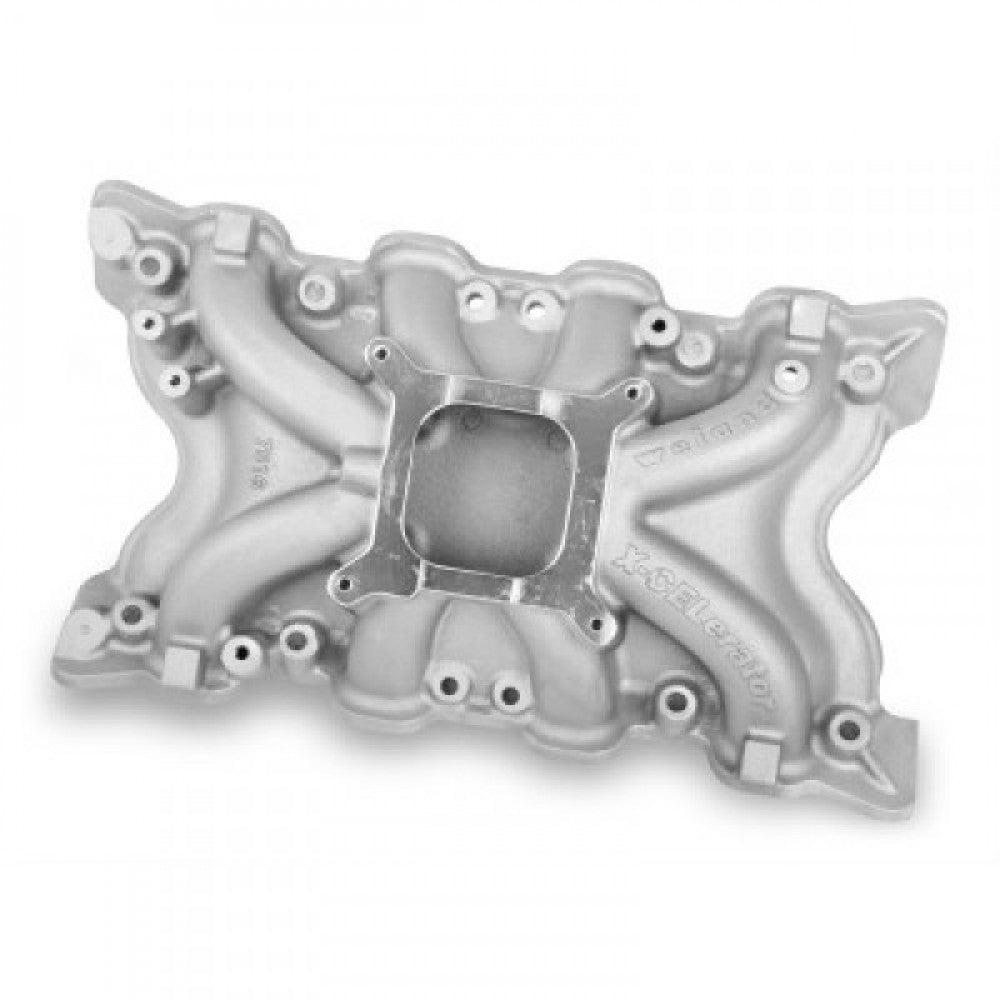

The WEIAND X-CELerator™ SERIES: 360°, single-plane, open plenum manifold designed primarily for high-performance street, drag, marine and oval track use. With an effective rpm range of 2000 to 6500 rpm, this series works best with a higher compression ratio, 280° or more of cam duration and headers with 1-5/8" primary tubes. Being a mid- to high-rpm manifold, a standard transmission, or an automatic transmission with a 3000 rpm stall converter, is highly recommended. The carburetor mounting pad is designed to accept current performance aftermarket carburetors. The WEIAND X-CELerator Series is the ultimate street/strip performance manifold for single 4V applications where increased torque and power is required in the mid and high rpm ranges.
Features:
Single Plane Design
Square Carburetor Mounting Flange
Power band: 1500-7000 RPM
Height: Front 4.28", Rear 5.36"
Port Size: 1.95” height 1.34" width
Specifications :
Product Type: Intake Manifolds, Carbureted
Product Line: Weiand X-CELerator Intake Manifolds
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: One
Intake Style: Single plane
Fuel System Type: Carb
Manifold Type: Low Rise
Basic Operating RPM Range: 1,500-7,000
Intake Manifold Height: 4.820"
Intake Finish: Natural
Intake Material: Aluminum
EGR: No
Quantity: Sold Each
Features:
Single Plane Design
Square Carburetor Mounting Flange
Power band: 1500-7000 RPM
Height: Front 4.28", Rear 5.36"
Port Size: 1.95” height 1.34" width
Specifications :
Product Type: Intake Manifolds, Carbureted
Product Line: Weiand X-CELerator Intake Manifolds
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: One
Intake Style: Single plane
Fuel System Type: Carb
Manifold Type: Low Rise
Basic Operating RPM Range: 1,500-7,000
Intake Manifold Height: 4.820"
Intake Finish: Natural
Intake Material: Aluminum
EGR: No
Quantity: Sold Each
