Description
PRODUCT DESCRIPTION

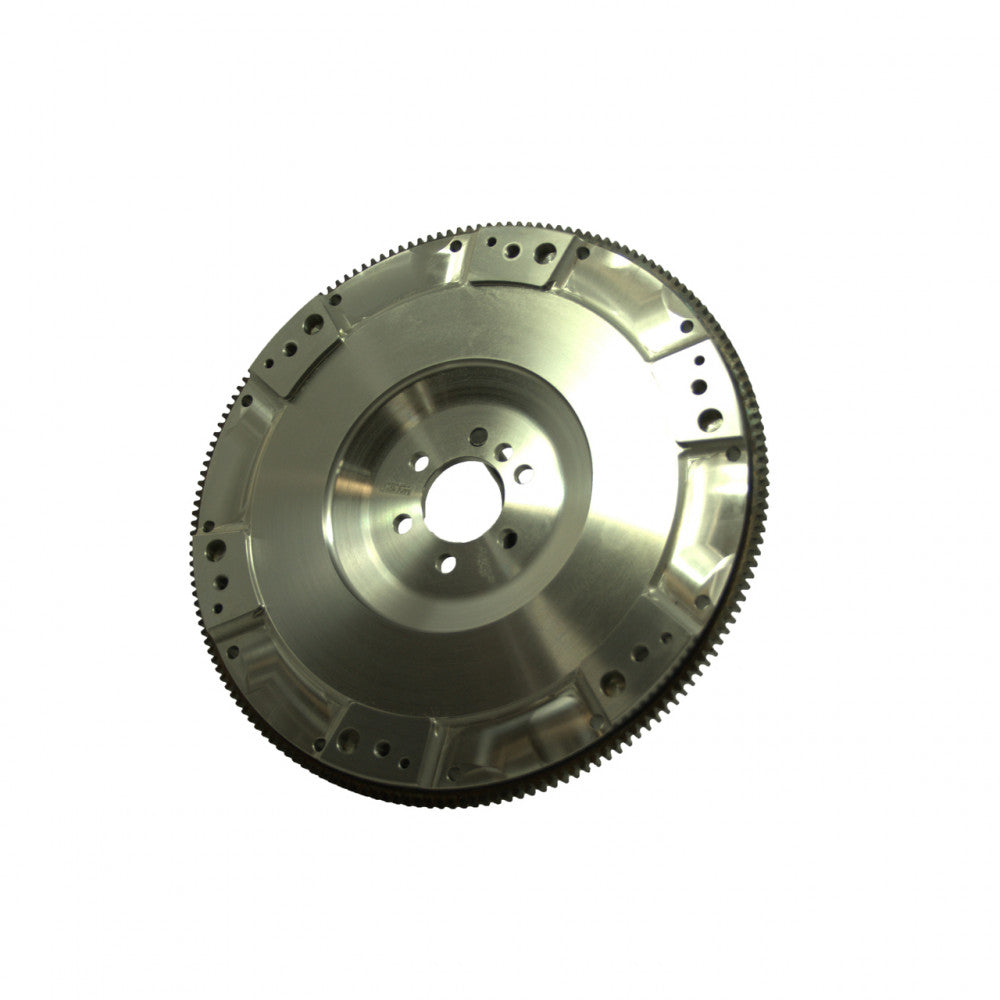

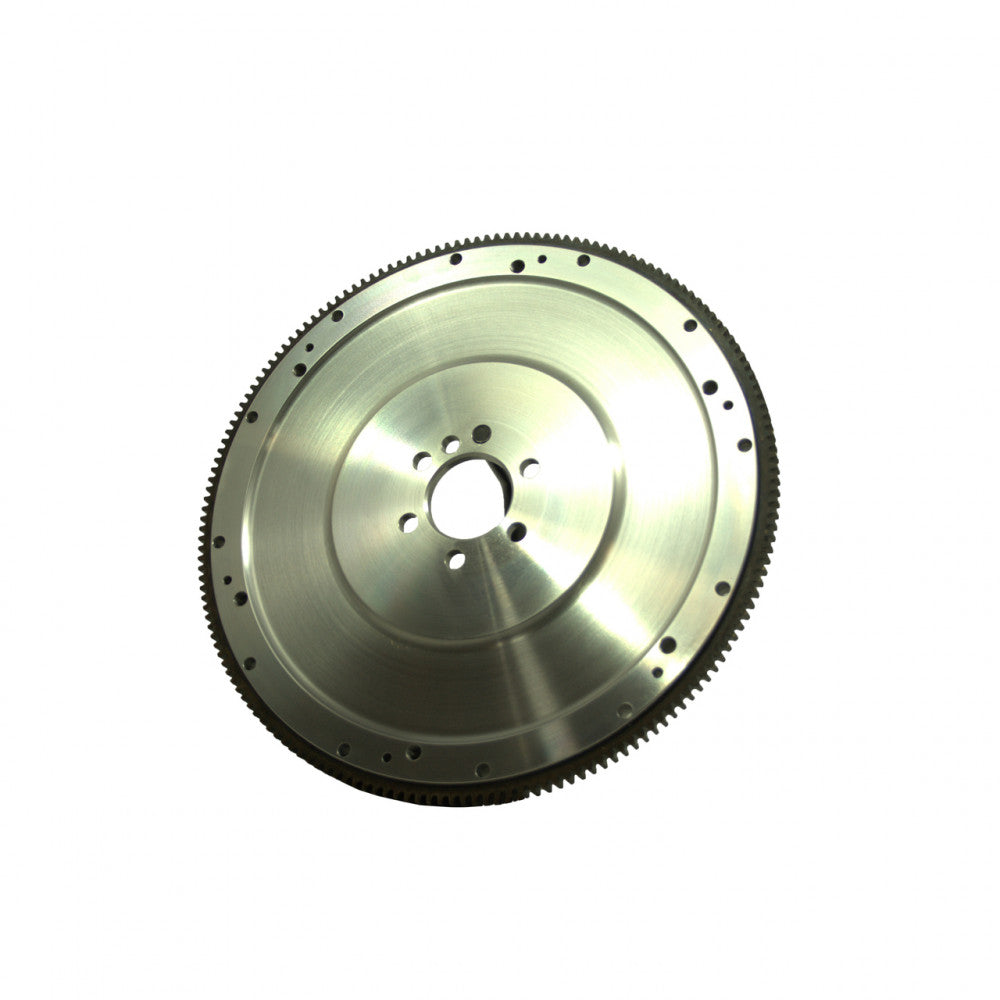

This Flywheel allows the factory Corvette ZR1 LS9 clutch to be installed on LS1/LS2, LS3, LS7 and other LS-based crate engines that use the '6-bolt crank'.
KEY FEATURES
• '6 Bolt Crank' pattern to mount on Chevrolet LS1/LS2/LS3 and LS7
• Offers exceptional power and torque holding capacity
• Replacing factory cast iron flywheel with YT steel flywheel, saves both weight and rotating mass
• Highest quality billet steel
• Made to OEM+ specifications
• Weight 12.9kg (24lbs)
• 100% Australian designed, engineered and manufactured.
ITEM SPECIFICS:
PART NO. YT9910LS9
PRODUCT TYPE FLYWHEEL
CLASSIFICATION STANDARD
FLYWHEEL BALANCE NEUTRAL
ENGINE BALANCE STATUS 0
WEIGHT KG. 12.9
NO. OF TEETH 168
MAKE CHEV / HOLDEN
ENGINE APPLICATION V8
ENGINE TYPE LS1/LS2/L77/L98/LS3
ENGINE CAPACITY 5.7/6.0/6.2
YEAR 06/99-07/06
CLUTCH PATTERN FACTORY ZR1 LS9
CLUTCH DIAMETER N/A
CLUTCH NOTES N/A
CRANK SPIGOT DIAMETER 2.0625
CRANK BOLT HOLES 6
PRESSURE PLATE BOLT HOLES 6-/3
NOTES SUITS 6 BOLT CRANKSHAFT, DOES NOT SUIT LSA 8 BOLT OR LS9 9 BOLT CRANKSHAFT.
